Strona głównaDESOI AirPower L36-2C Set
17606_DESOI AirPower L36-2C.jpg
17606_DESOI AirPower L36-2C.jpg 17606_DESOI AirPower L36-2C_Druckminderer.jpg 17606_DESOI AirPower L36-2C_Manometer.jpg 17606_DESOI AirPower L36-2C_Oelschmierung.jpg 16875_16776_Materialschlauch.jpg 17812_2K-Mischkopf.jpg

DESOI AirPower L36-2C
Set

Video - Activation

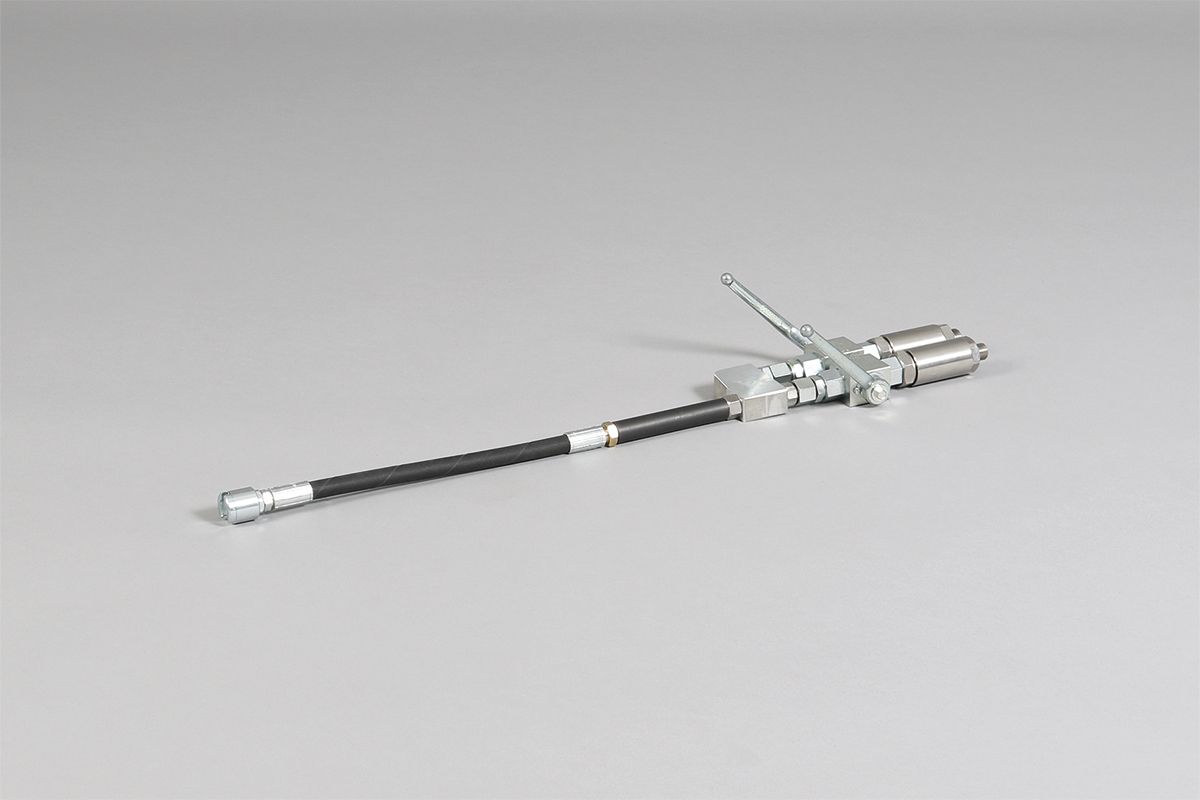

moving device, 3 m suction system Ø 20 mm with suction basket Ø 40 mm: component A: transparent, component B: black, 2 x manometer 0 - 400 bar, material hose connection: component A: external thread G1/2", component B: external thread G3/8", return hoses Ø 13 mm, transparent, air connection package: claw coupling 42 mm, air plug NW 7.2; incl. instruction manual, No. 16866: HP hose - steel Ø 10 mm, 10 m, union nuts G1/2" (solvent resistant, component A), No. 16865: HP hose - steel Ø 10 mm, union nuts G3/8" (solvent resistant, component B), No. 17812-12: 2C mixing head - steel (2 x HP ball valve, 2 x check valve stainless steel, mixing tube with 12 x inline static mixer, whip 0.3 m long, sliding coupling with free passage Ø 2.5 mm, component B: external thread G3/8")
Zaleta/uwaga
  • Manometers at machine outlet for pressure control of each components
  • Big material passages - for highly viscous material
  • Adjustment of the material volume
Materiał wejściowy
  • 2C injection resin
Dane techniczne
Working pressure - infinitely variable 5 - 200 bar
Delivery rate max. 20 l/min
Air consumption 2.5 m³/min
Transmission ratio 1:25
Mixing ratio 1:1
Air pressure max. 8 bar
Weight 92 kg
L x W x H 110 x 55 x 65 cm
Opis produktu

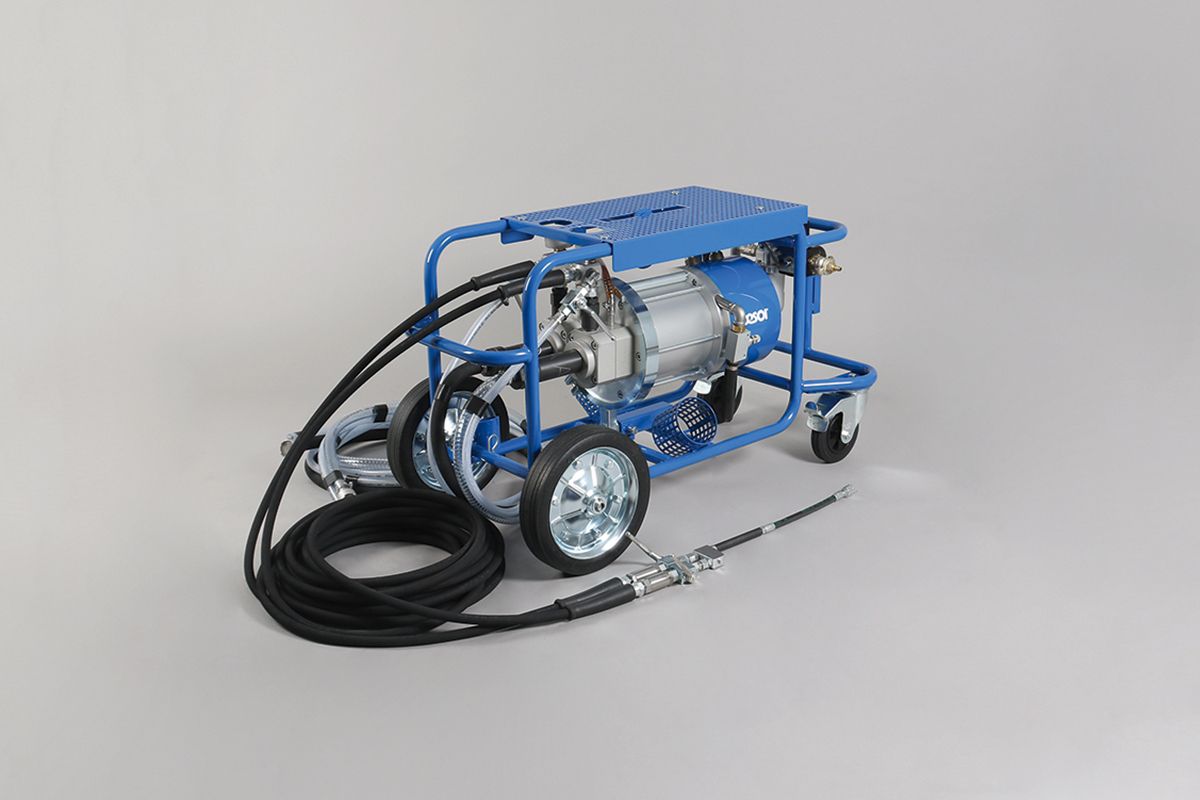

The reciprocating pump DESOI AirPower L36-2C achieves a delivery of max. 20 l/min at a mixing ratio of 1:1. Due to the big valves and pistons also highly viscous material can be used without any problems. The result is a very maintenance-friendly machine including suitable accessories.
