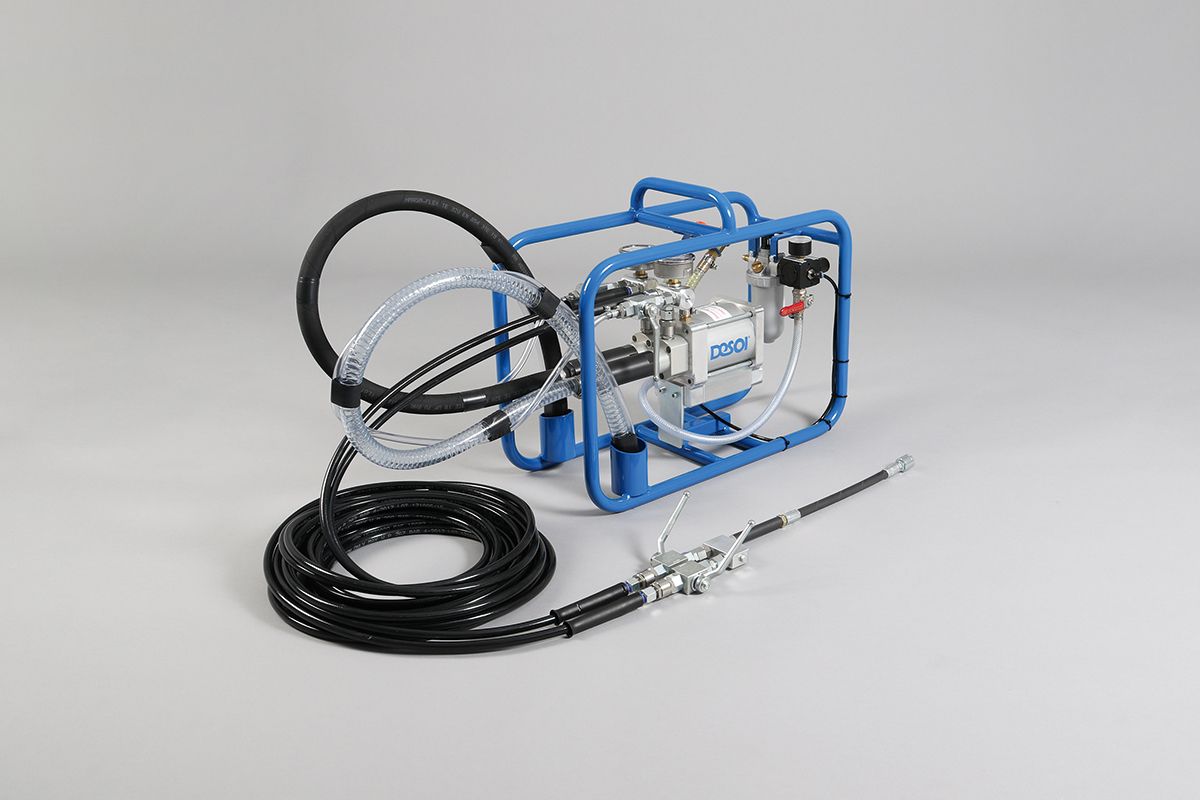

DESOI AirPower S25-2C
Set

Video - Inbetriebnahme

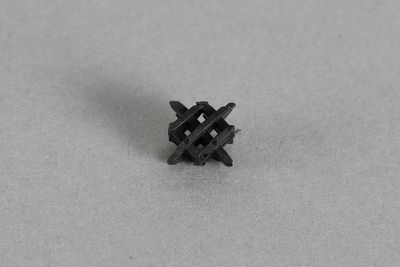

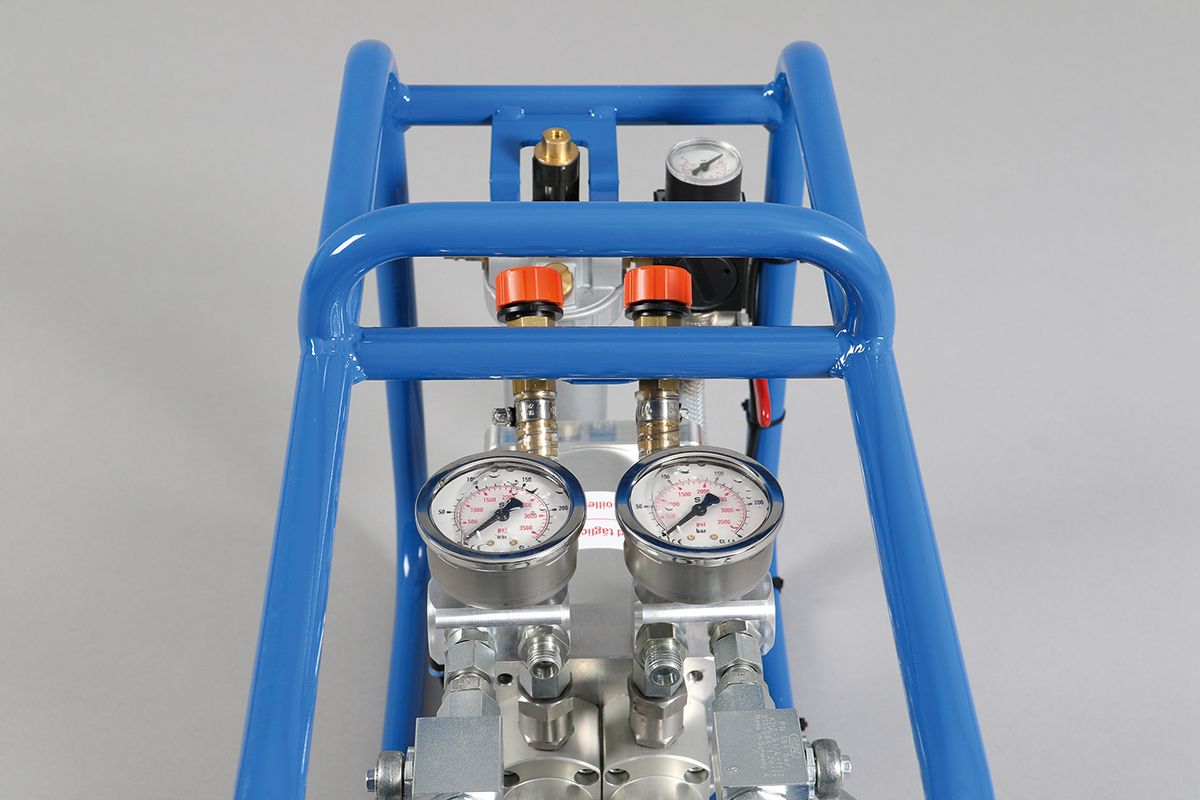

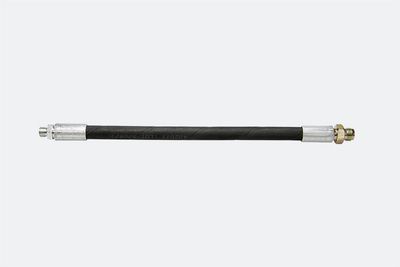

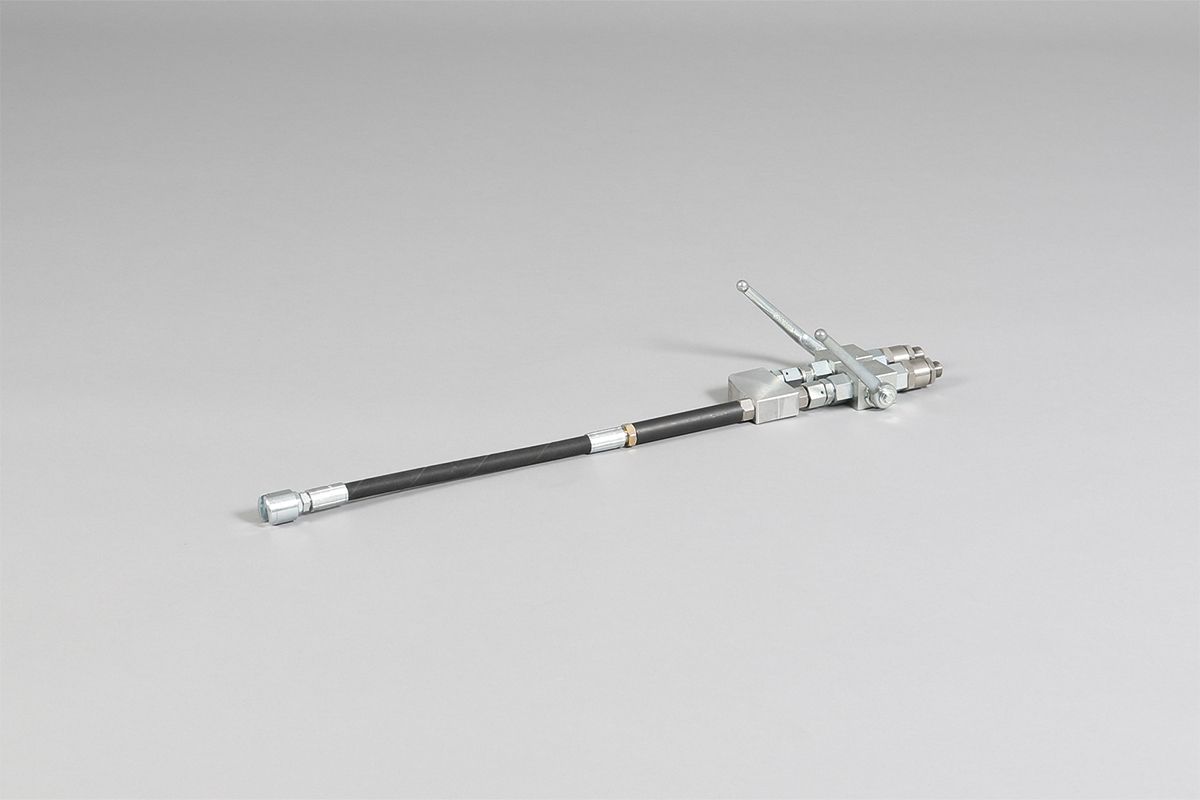

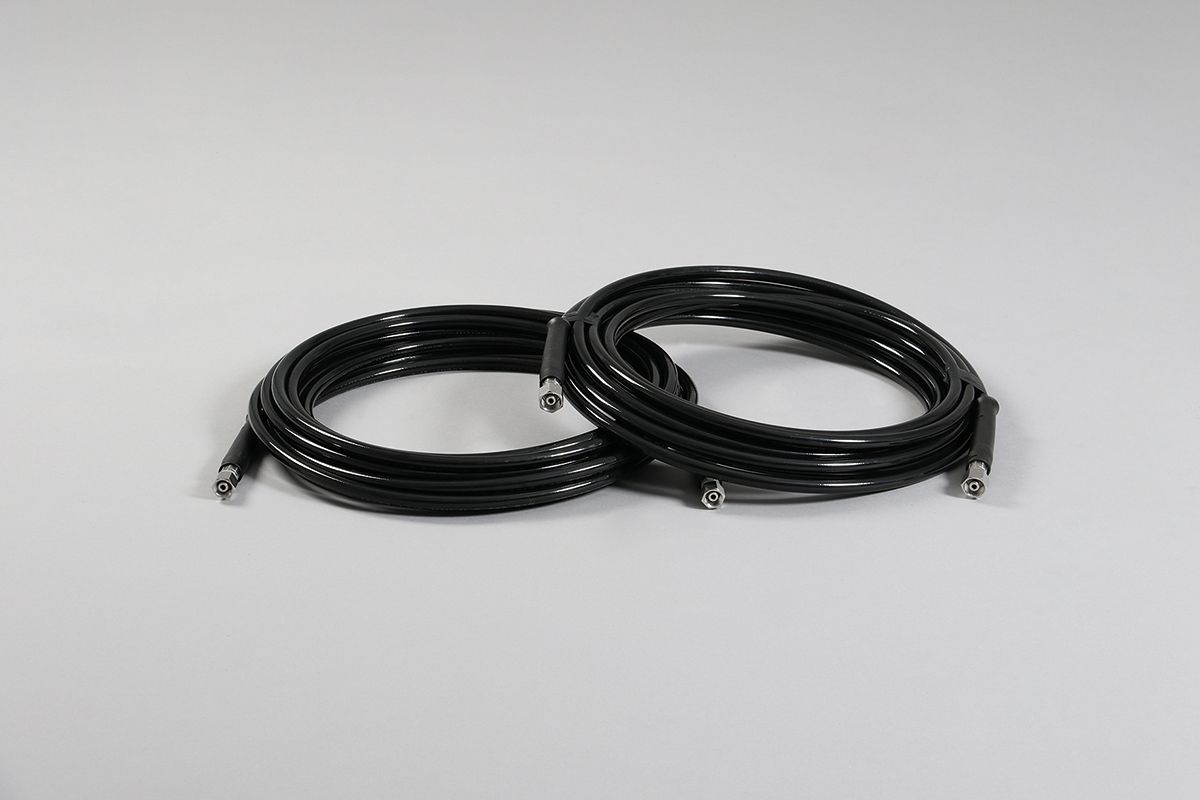

carrying frame, 1.5 m suction system Ø 20 mm with suction basket Ø 40 mm: component A: transparent, component B: black, 2 x manometer 0 - 250 bar, material hose connection: component A: external thread M16x1.5; component B: external thread M14x1.5; return hoses Ø 8 mm: transparent, air connection: air plug NW 7.2; incl. instruction manual, No. 16871: HP hose - steel Ø 6 mm, 10 m, union nuts M16x1.5 (solvent-resistant, A component), No. 16870: HP hose - steel Ø 6 mm, union nuts M14x1.5 (solvent-resistant, B component), No. 17625-08: 2C mixing head - steel (2 x HP ball valve, 2 x check valve - stainless steel, mixing tube with 8 x inline static mixer, whip 0.3 m long, sliding coupling straight with free passage Ø 2.5 mm, material hose connection: component A: external thread M16x1.5; component B: external thread M14x1.5)
Zaleta/uwaga
  • Big material passages - for highly viscous material
  • Easy maintenance and repair
  • No risk of injuries caused by the tension spring seal
  • Solid mixing ratio 1 : 1 - no errors by users
Materiał wejściowy
  • 2C injection resin
Dane techniczne
Working pressure - infinitely variable 10 - 100 bar
Delivery rate max. 7.6 l/min
Air consumption 1 m³/min
Air pressure max. 8 bar
Transmission ratio 1:13
Air consumption and delivery rate at 100 bar back pressure (injection pressure)
Air consumption 75 l/min Delivery rate 0,5 l/min
Air consumption 133 l/min Delivery rate 1 l/min
Air consumption 283 l/min Delivery rate 2 l/min
Air consumption 391 l/min Delivery rate 3 l/min
Mixing ratio 1:1
Weight 20.2 kg
L x W x H 58 x 24 x 46 cm
Opis produktu
The pneumatic reciprocating pump DESOI AirPower S25-2C combines high capacity with compact design. Due to the directly mounted seals on the piston, retensioning is not necessary. The result is a very maintenance-friendly machine including suitable accessories.
