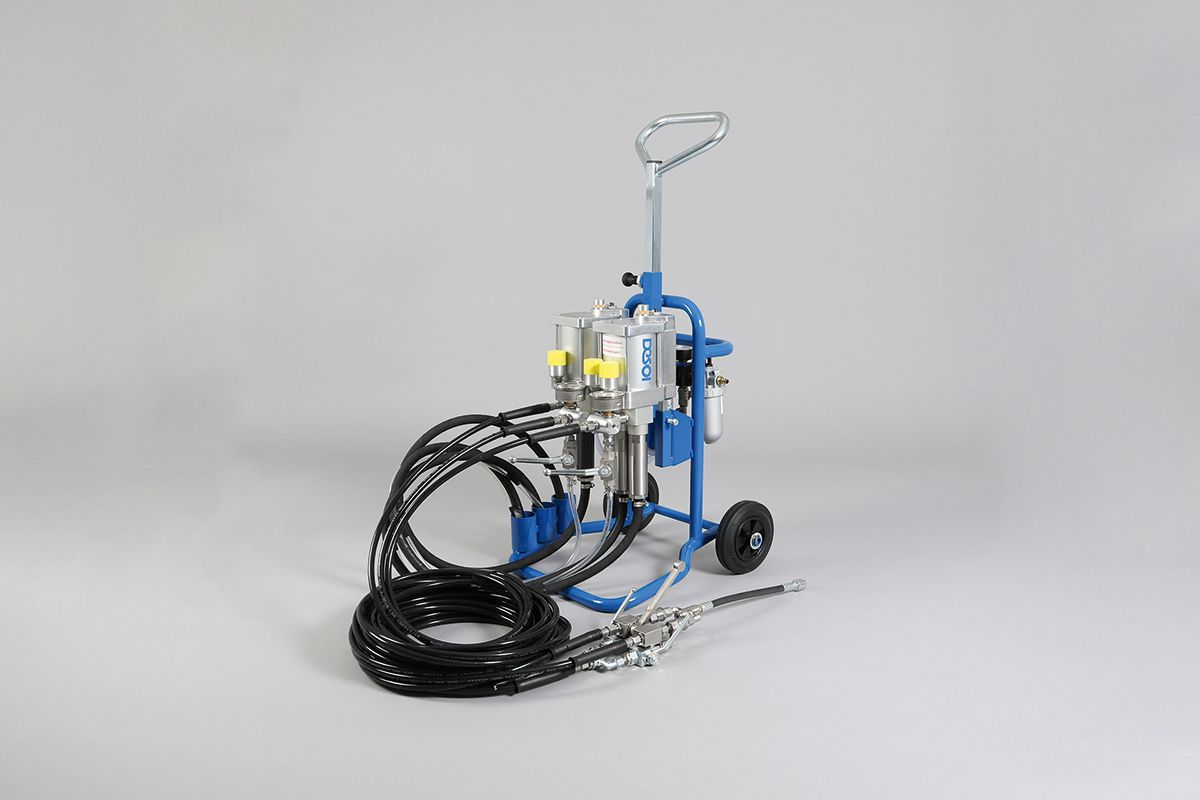

DESOI AirPower S25-3C VA
Set

Video - Activation

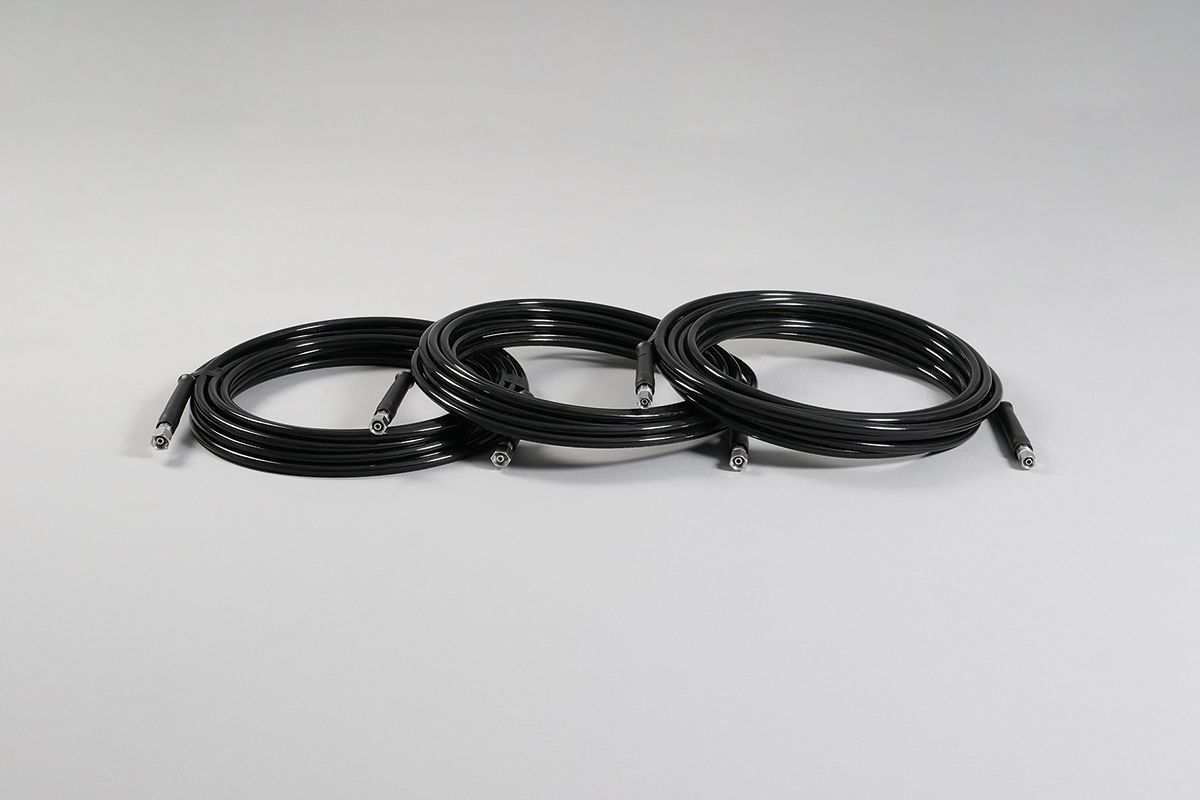

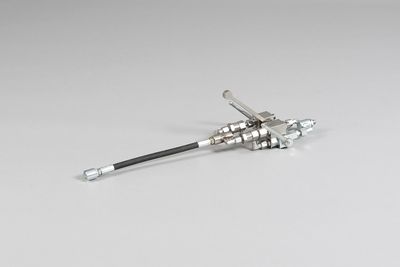

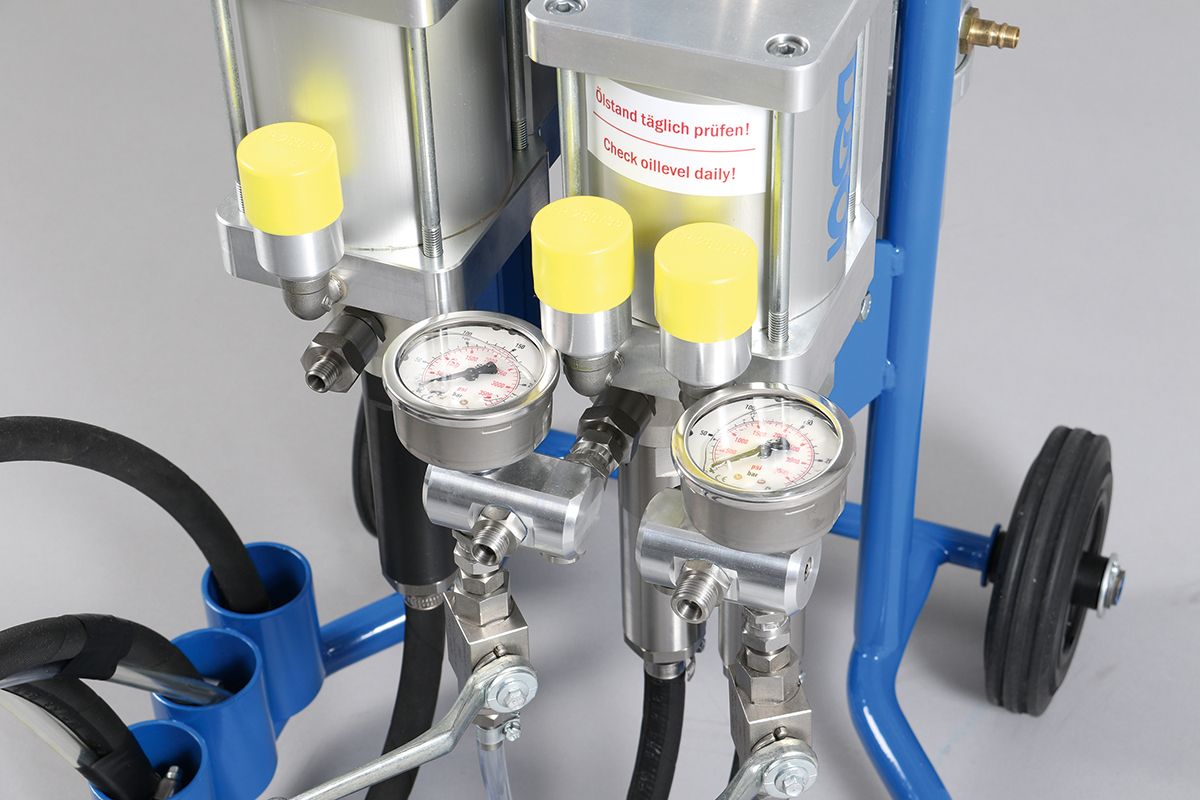

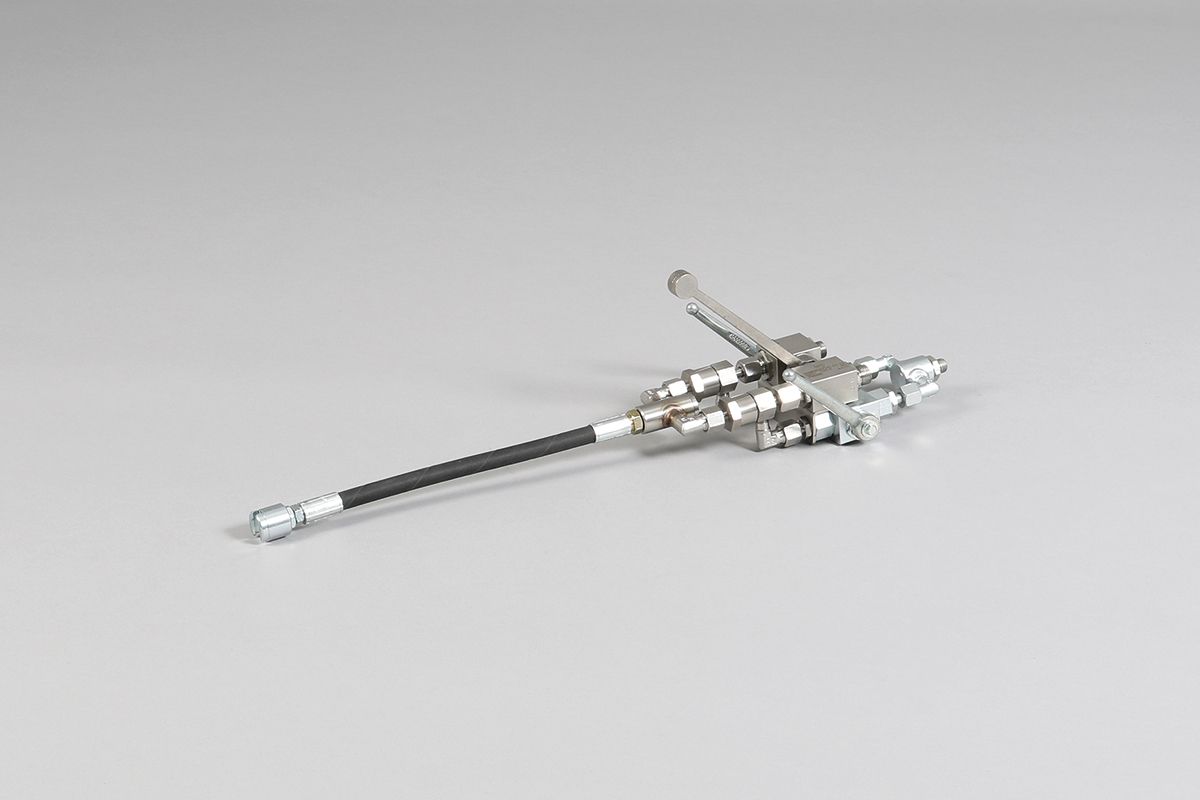

moving device, 1.5 m suction system Ø 13 mm with suction basket Ø 40 mm: component A, B and rinsing pump: black, 2 x manometer 0 - 250 bar, rinsing pump S25, material hose connection: component A: external thread M16x1.5; component B: external thread M14x1.5; rinsing pump: external thread M12x1.5; return hoses Ø 8 mm: transparent, air connection: air plug NW 7.2; incl. instruction manual No. 16861: HP hose - stainless steel Ø 6 mm, 10 m, union nuts M16x1.5 (solvent resistent, component A), No. 16860: HP hose - stainless steel Ø 6 mm, union nuts M14x1.5 (solvent resistent, component B), No. 16813: HP hose - stainless steel Ø 6 mm, union nuts M12x1.5 (solvent resistant), No. 17764: 3C mixing head - stainless steel (2 x HP ball valve, 2 x HP ball valve steel, 2 x non-return valve, mixing block with 2 x inline static mixer, whip 0.3 mm long, sliding coupling straight with free passage Ø 2,5 mm material hose connection: component A: M16x1.5; component B: M14x1.5; rinsing connection: M12x1.5)
Zaleta/uwaga
  • Big material passages
  • Easy maintenance and repair
  • Solid mixing ratio 1 : 1 - no errors by users
Materiał wejściowy
  • acrylate gel
Dane techniczne
Working pressure - infinitely variable 10 - 100 bar
Delivery rate max. 8 l/min
Air consumption 1 m³/min
Air pressure max. 8 bar
Transmission ratio 1:13
Air consumption and delivery rate at 100 bar back pressure (injection pressure)
Air consumption 83 l/min Delivery rate 0,5 l/min
Air consumption 166 l/min Delivery rate 1 l/min
Air consumption 342 l/min Delivery rate 2 l/min
Air consumption 433 l/min Delivery rate 3 l/min
Mixing ratio 1:1
Weight 29.3 kg
L x W x H 78 x 39 x 80 cm
Rinsing pump S25
Working pressure - infinitely variable 7 - 220 bar
Delivery rate 5 l/min
Transmission ratio 1:28
Opis produktu
The reciprocating pump is equipped with a forced control. The material is delivered at a mixing ratio of 1:1. The big and exact operating valves provide high flow rate and high mixing accuracy. DESOI AirPower S25-3C VA including suitable accessories is easy to maintain and low wearing. All material conducting parts are made of stainless steel.
