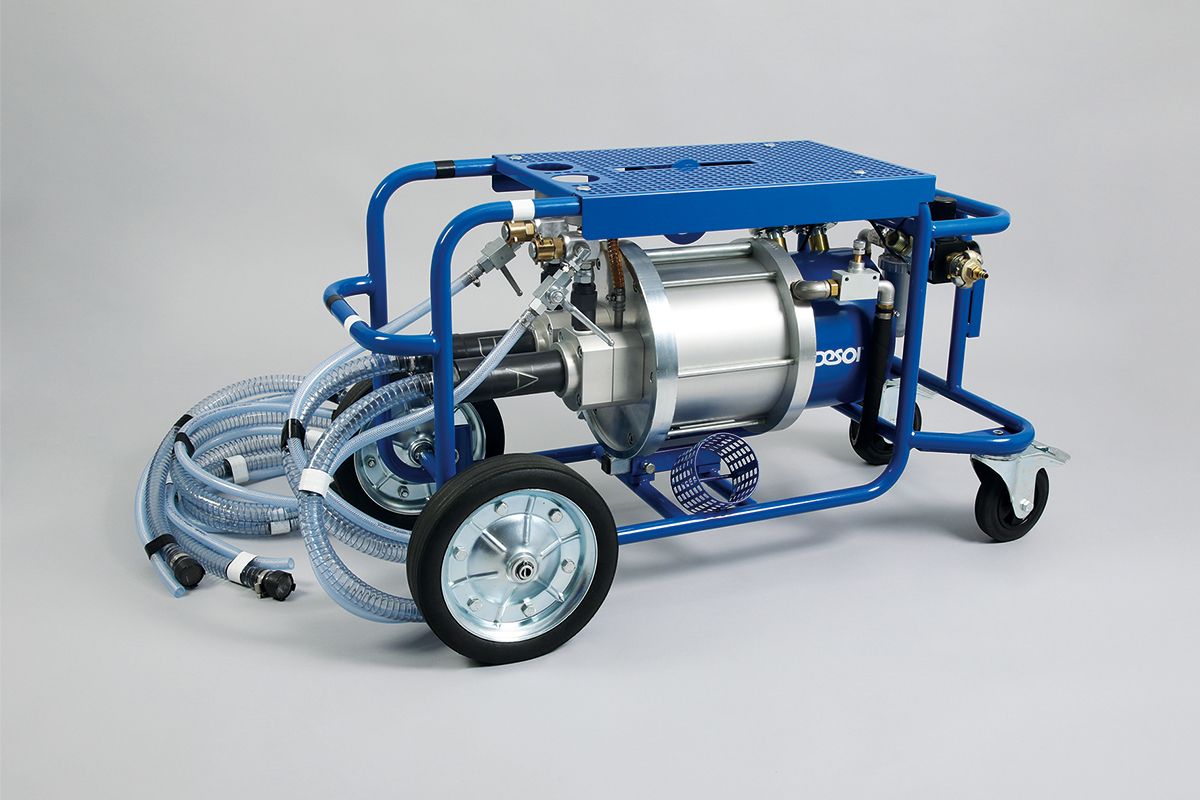

DESOI AirPower XL50-2C

moving device, 3 m suction hose Ø 25 mm with suction basket Ø 40 mm, component A and B: transparent, 2 x manometer combination 0 - 400 bar, return hoses Ø 13 mm - transparent, material hose connection: component A and B: coupling Steck-O DN13; air connection package: claw coupling 42 mm, air plug NW 7.2; claw coupling Rd32x1/8" outside, incl. instruction manual marking - material hose/ suction hose/ return hose component A: adhesive tape - white, component B: adhesive tape - black
Zaleta/uwaga

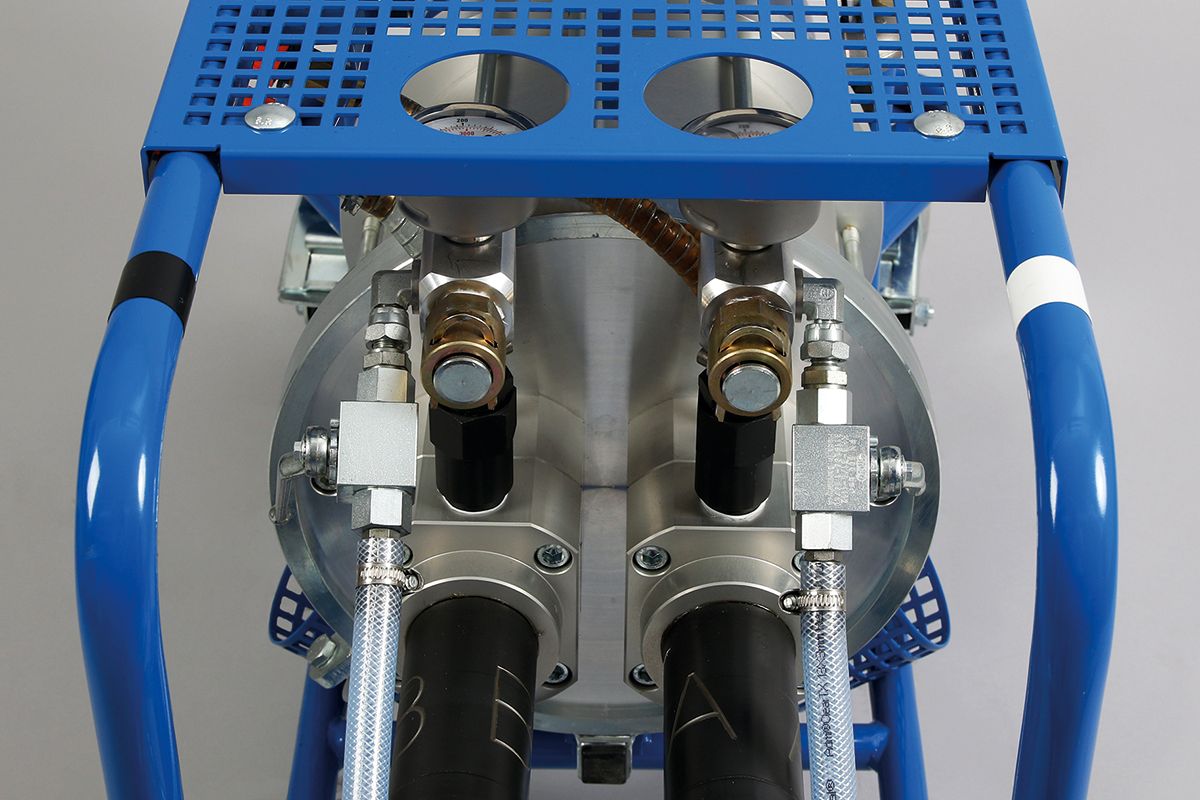

  • Manometers at machine outlet for pressure control of each components
  • Big material passages - for highly viscous material
  • Adjustment of the material volume
Materiał wejściowy
  • 2C injection resin
Dane techniczne
Working pressure - infinitely variable 20 - 140 bar
Delivery rate max. 25 l/min
Air consumption 2.5 m³/min
Pressure ratio 1 : 20
Mixing ratio 1 : 1
Air pressure max. 7 bar
Weight 105 kg
L x W x H 110 x 55 x 65 cm
Opis produktu
The reciprocating pump DESOI AirPower XL50-2C achieves a delivery of max. 25 l/min at a mixing ratio of 1:1. Due to the big valves and pistons also highly viscous material can be used without any problems.
