Strona głównaDouble inflatable packer TPD 82 Flex for borehole-Ø 82-158 mm

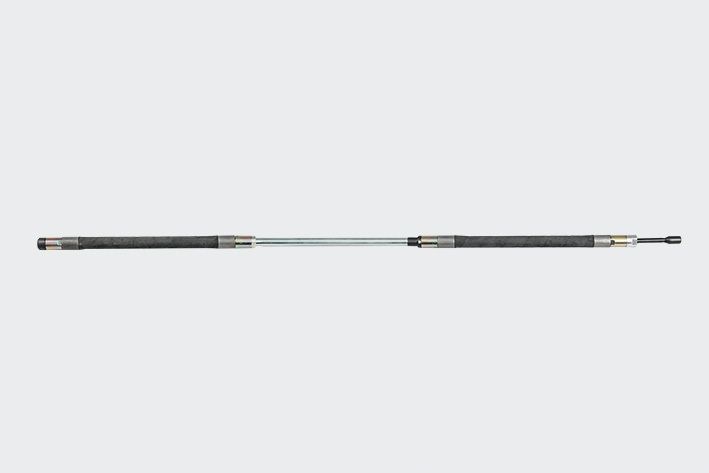

Double inflatable packer TPD 82 Flex
for borehole-Ø 82-158 mm

for borehole-Ø 82-158 mm, 2 x 550 mm inflation hose, material openings lateral 3 x Ø 15 mm, connecting thread material hose inside G1, connecting thread extension line inside M10x1, flexible distance area
Doppel-Blähpacker TPD 82 Flex,
Double inflatable packer TPD 82 Flex, 330 mm injection area
Item No.:
69458
PU:
1 piece
Doppel-Blähpacker TPD 82 Flex,
Double inflatable packer TPD 82 Flex, 500 mm injection area
Item No.:
69458
PU:
1 piece
Doppel-Blähpacker TPD 82 Flex,
Double inflatable packer TPD 82 Flex, 620 mm injection area
Item No.:
69458
PU:
1 piece
Doppel-Blähpacker TPD 82 Flex,
Double inflatable packer TPD 82 Flex, 750 mm injection area
Item No.:
69458
PU:
1 piece
Doppel-Blähpacker TPD 82 Flex,
Double inflatable packer TPD 82 Flex, 1.000 mm injection area
Item No.:
69458
PU:
1 piece
Doppel-Blähpacker TPD 82 Flex,
Double inflatable packer TPD 82 Flex, 2.000 mm injection area
Item No.:
69458
PU:
1 piece
Zaleta/uwaga
  • Injection area freely selectable, different lengths available
  • Safe application due to screw connections
  • Reusable
  • Safe sealing
  • Variable tension force
  • Hardened sealing surface
  • All parts exchangeable
Materiał wejściowy
  • acrylate gel
  • micro cement
  • 1C injection resin
  • silicate resin
  • polyurethane
  • aqueous solution
  • 2C injection resin
  • injection mortar
  • cement paste
  • cement suspension
  • insulating material
  • water
  • 2C polyurethane
Dane techniczne
Type TPD 82 Flex
Borehole Ø min.-max. 82-158 mm
Borehole Ø 101 mm max. expansion pressure 90 bar, max. injection pressure 70 bar
Borehole Ø 119 mm max. expansion pressure 60 bar, max. injection pressure 40 bar
Borehole Ø 134 mm max. expansion pressure 45 bar, max. injection pressure 25 bar
Borehole Ø 143 mm max. expansion pressure 30 bar, max. injection pressure 10 bar
Inflation hose length 2 x 550 mm
Material openings lateral 3 x Ø 15
Connection thread for material hose inside G1"
Connection thread for expansion line inside M10x1
Securing cord eye
Injection area Distance range + 2 x swage fitting
Information
Expansion connections
with union nuts on both sides and cutting ring are available in different lengths.
Please ask us!
